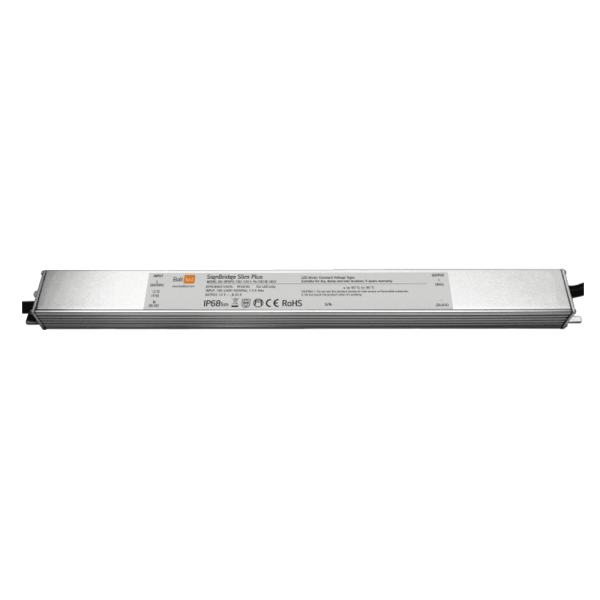

SignBridge SLIM PLUS 12V | 100W

Original price was: $5.00.Current price is: $3.00.

BPSP.S-100-12V.1 is a 100 W constant voltage LED driver operating from 100~240 VAC. Thanks to the high efficiency of up to 92 % with a fanless design, this LED driver can operate for -40 C ~ +50 C case temperature under free air convection. The design of metal housing and IP68 ingress protection level allows BPSP.S-100-12V.1 to fit both indoor and outdoor applications, to provide the optimal flexibility for the LED lighting system.

Applications
  • LED signage
Feature and Benefits
  • Metal housing design with functional ground
  • Built-in active PFC function
  • IP68 rating for indoor or outdoor installations
  • Typical lifetime ≥50,000 hours
  • 5 years warranty

Conformity & standards

EMC Emission:

  • compliance with EN55015

EMC Immunity:

  • EN55015
  • EN61547
  • EN61000-3-2
  • EN61000-3-3
  • CB
  • CE LVD:
  • IEC/EN61347
  • IEC/EN61347-2-13
  • UL8750
  • UL1310
Categories: , , ,

General Data

CHARACTERISTIC
VALUE
Certification CE, RoHS and UKCA compliant
Cold start, MS 3000
Height, mm 21.8
IP class IP68
Lenght, mm 347
Max input AC current, A 1.3
Max inrush current, A 70
Operating temperature -40°C ~ +50°C
Output current, A8 8.33
Output power, W 100
Output voltage, VDC 12
Over current protection Yes
Power factor 0.95
Storage relative humidity, % max 95
Storage temperature -40°C ~ +80°C
Supply voltage, V 100 – 240 AC
Application Signage lighting control
Warranty, years 5
Weight, g 530
Width, mm 33
Efficiency, % 92
Over temperature protection Yes
Over voltage protection Yes
Short circuit protection Yes







Downloads

Datasheet pdf – Preview
Installation guide pdf – Preview
CE & RohS Certificate pdf – Preview
