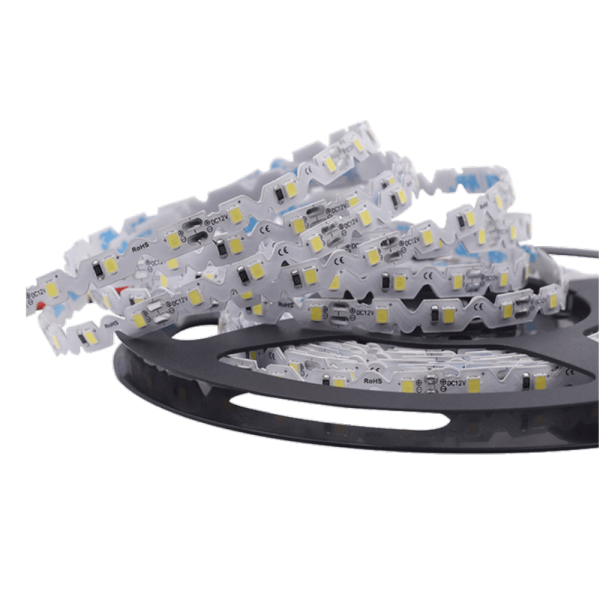

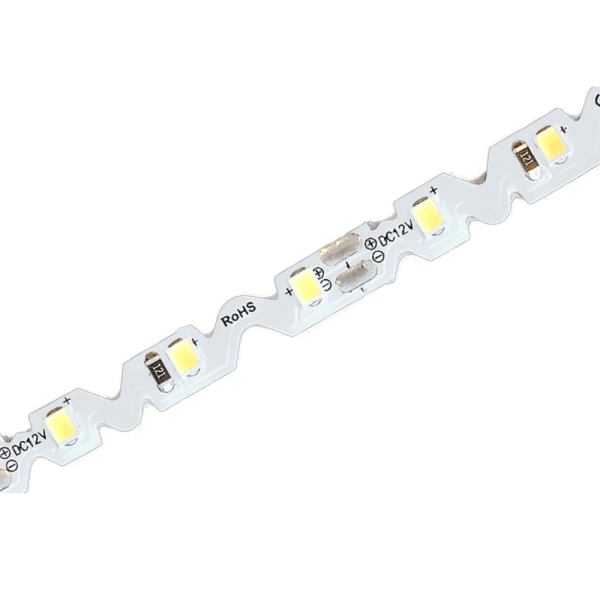

LINELIT ZIGZAG

Original price was: $5.00.Current price is: $3.00.

Flexible LED strips with 72 LEDs reaching up to 120 lm/w efficacy. Comes with double-sided tape for easy peel and use; the low temperature double sided copperplate design and low voltage drop. Great bendable and twistable design perfect for small light boxes and 3D letters.

Applications
  • Aluminium profiles
  • Advertisement boxes
  • Signs
  • General lighting
  • Automotive accents
  • Accent decor
Feature and Benefits
  • 5-years warranty
  • Durable thermal conductive double-sided adhesive tape
  • Compact 6 mm width
  • Bendable and twistable led strip
  • Low voltage drop

General Data

CHARACTERISTIC
VALUE
Supply voltage 12 VDC
Power 7.2 W
LEDs PER METER 72
STRIP WIDTH 6 mm
CUTTING STEP 41.6
COLOUR / CCT 3000 K | 6500 K
Operating temperature -20°C ~ +45°C
Storage temperature +5°C ~ +70°C
Certification CE and RoHS  compliant
IP class IP20
Lifetime L80 60,000h
Warranty 5 years
MOUNTING OPTIONS double-sided tape







Downloads

Datasheet pdf – Preview
Installation guide pdf – Preview
CE & RohS Certificate pdf – Preview
