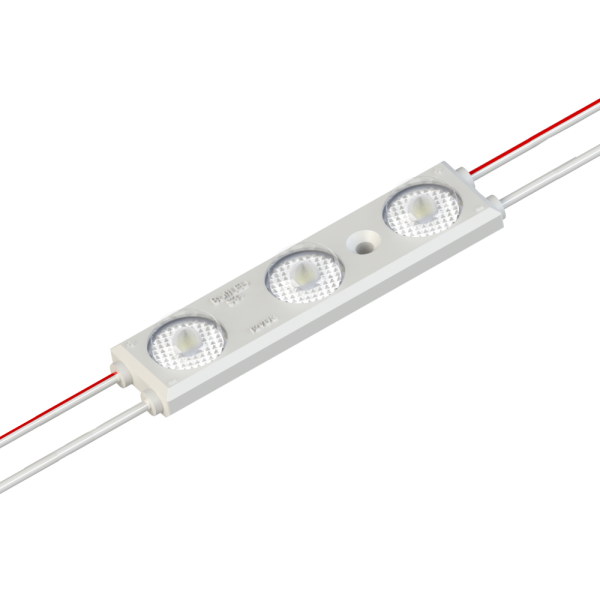

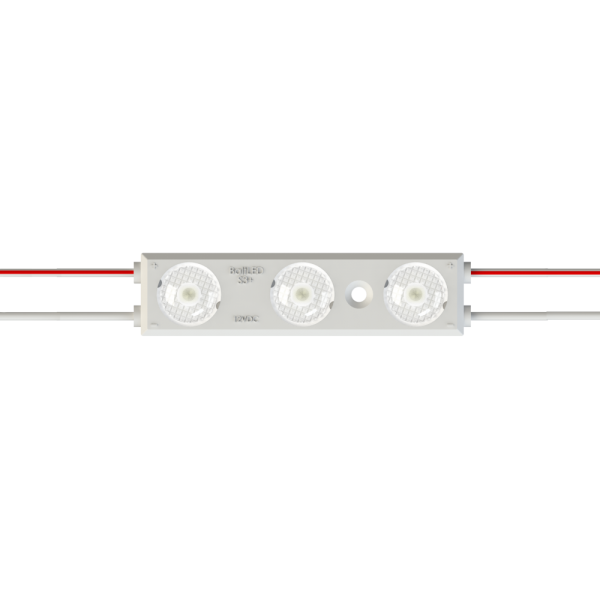

Crown OPTO S3+ modules are designed for the illumination of single-sided lightboxes and bigger channel letters with a depth ranging from 120 to 200 mm. These modules can be installed with a 350 mm step. To make the installation work easy and fast, they come with the adhesive containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S3+ modules have 5 years (24/7) warranty with L80 for 50 000 hours.

  • Single-sided lightboxes and bigger channel letters
  • Recommended depth 120 – 200 mm
Feature and Benefits
  • Efficiency up to 124 lm/W
  • 350 mm distance between centers of modules
  • IP67 protection class
  • L80 50, 000 h lifetime
  • 5-year 24/7 warranty
  • Easy tear finger-lift tape for faster installation

General Data

Supply voltage 12 VDC
Power 1.45 W
Recommended depth From 120 to 200 mm
CC distance 350 mm
Binning 3 SDCM
Operating temperature -30°C ~ +50°C
Storage temperature +5°C ~ +70°C
Storage conditions Relative humidity <60%
IP class IP67
Certification CE, RoHS and UKCA  compliant
Lifetime L80 50,000h
Warranty 5 years (24/7)*
