$3.00

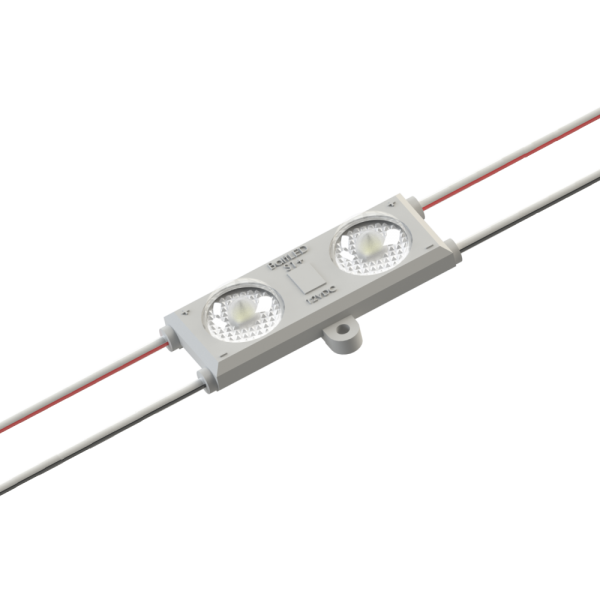

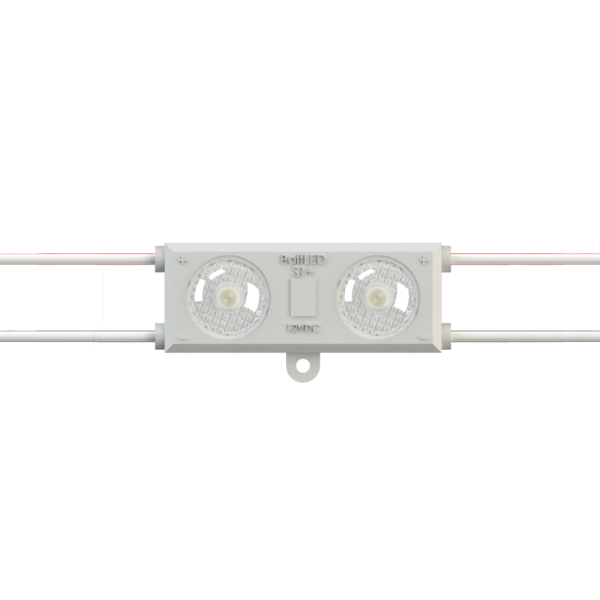

Crown OPTO S1+ is a new solution for uniform illumination of single-sided lightboxes and bigger channel letters with depth ranging from 80 to 140 mm. Due to the new optics, we have used with this module, light is distributed more evenly inside the lightboxes or channel letters. As these modules have a better light distribution pattern and longer wires, they can be installed with a 250 mm step. To make the installation work easy and fast, these modules come with the adhesive containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S1+ modules have 5 years (24/7) warranty with L80 for 50 000 hours.
CHARACTERISTIC |
VALUE |
| Supply voltage | 12 VDC |
| Power | 1.0 W |
| Recommended depth | From 80 to 140 mm |
| CC distance | 250 mm |
| Binning | 3 SDCM |
| Operating temperature | -30°C ~ +50°C |
| Storage temperature | +5°C ~ +70°C |
| Storage conditions | Relative humidity <60% |
| IP class | IP67 |
| Certification | CE, RoHS and UKCA compliant |
| Lifetime | L80 50,000h |
| Warranty | 5 years (24/7)* |
Datasheet pdf – Preview
Installation guide pdf – Preview
CE & RohS Certificate pdf – Preview
