Original price was: $5.00.$3.00Current price is: $3.00.

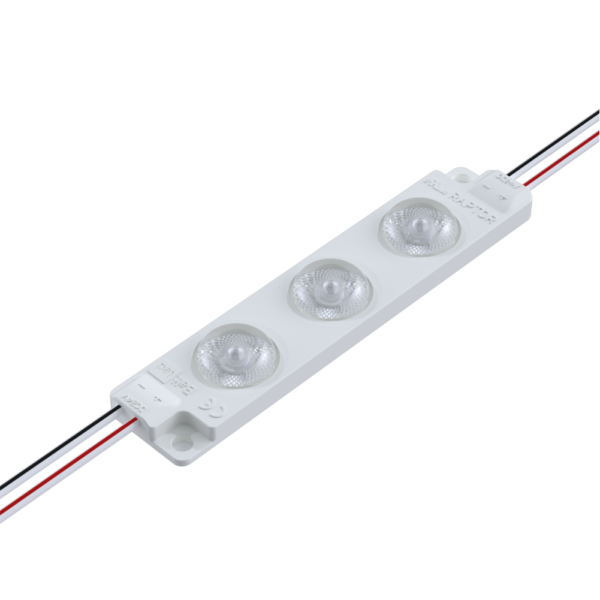

RAPTOR-3 – the ultimate solution for illuminating slim single-sided lightboxes. Engineered for depths ranging from 140 to 220 mm, RAPTOR-3 ensures even and bright illumination, reducing the need for multiple modules per square meter. With 50 modules in a single chain, RAPTOR-3 allows for 15 meters of continuous lighting without needing to reconnect chains, significantly lowering installation costs.
CHARACTERISTIC |
VALUE |
| Supply voltage | 24 VDC |
| Power | 1.4 W |
| CRI | 80 |
| Recommended depth | From 140 to 220 mm |
| CC distance | 300 mm |
| Binning | 3 SDCM |
| Operating temperature | -20°C ~ +50°C |
| Storage temperature | -30°C ~ +60°C |
| Storage conditions | Relative humidity <60% |
| Certification | CE, UKCA, RoHS compliant |
| IP class | IP 67 |
| Lifetime | L80 75,000 h |
| Warranty | 5 years (24/7)* |
Baltled specializes in LED illumination solutions for signage applications, with a focus on helping customers make the most of lighting technologies.
