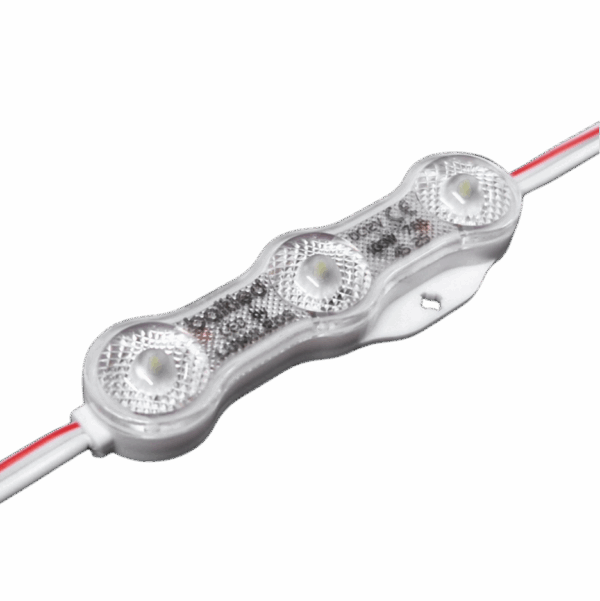

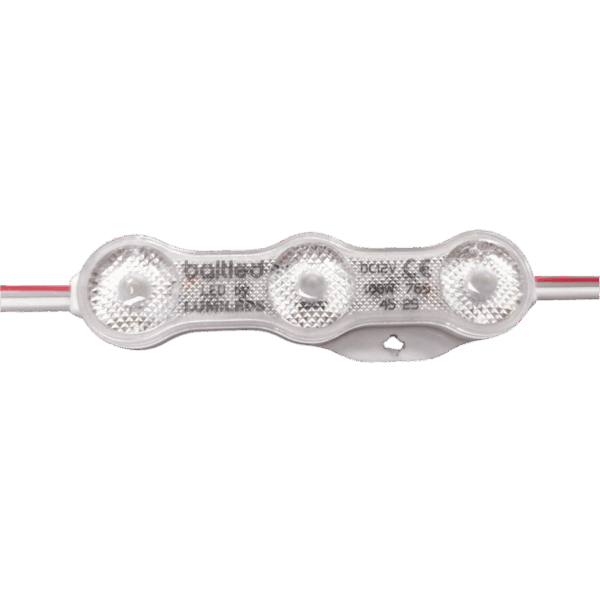

Designed for medium-depth channel letters and single-sided lightboxes (80-150 mm), BASE-3 ULTRA delivers up to 175 lm/W with a 175° wide-beam optic for broader and more uniform illumination. Operating at just 1.08 W, it combines outstanding efficiency with proven durability. With IP68 protection, L80 60,000 h lifetime, and a 5-year warranty, BASE-3 ULTRA is the reliable choice for high-performance signage illumination.
CHARACTERISTIC |
VALUE |
| Supply voltage | 12 VDC | 24 VDC |
| Power | 1.08 W |
| Recommended depth | From 80 to 150 mm |
| CC distance | 150 mm | 200 mm |
| Binning | 3 SDCM |
| Operating temperature | -20°C ~ +60°C |
| Storage temperature | -40°C ~ +60°C |
| Storage conditions | Relative humidity <60% |
| IP class | IP68 |
| Certification | CE, UKCA and RoHS compliant |
| Lifetime | L80 60,000h |
| Warranty | 5 years |
