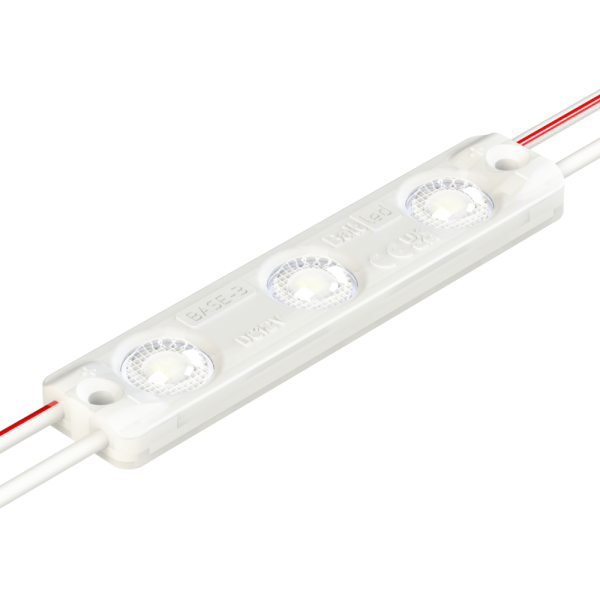

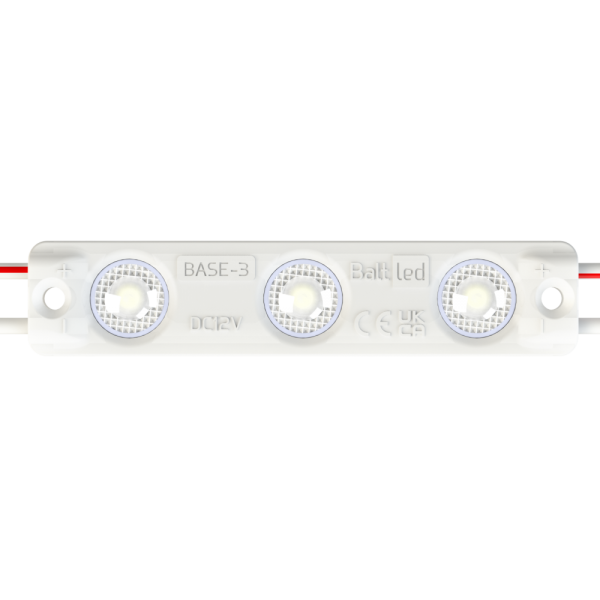

BASE series modules are designed to illuminate middle-depth letters and single-sided lightboxes. Because of their compact design, these modules can easily illuminate smaller letters ranging in depth from 80 to 150 mm. BASE modules have a lifetime of L70 70 000 h and a 5-year warranty. BASE – an excellent choice for projects requiring a cost-effective but high-quality solution.

  • Channel letters signs and light boxes
  • Recommended depth 80 – 150 mm
Feature and Benefits
  • Compact design
  • Standard and high-efficacy versions
  • Efficacy up to 156 lm/W
  • IP66 protection class
  • 5-year warranty

General Data

Supply voltage 12 VDC
Power 0.72 W | 0.96 W | 1.2 W
Recommended depth From 80 to 150 mm
CC distance 150 mm
Binning 3 SDCM
Operating temperature -20°C ~ +50°C
Storage temperature -30°C ~ +60°C
Storage conditions Relative humidity <60%
IP class IP66
Certification CE, UKCA, RoHS and UL compliant
Lifetime L70 70,000h
Warranty 5 years (24/7)*
