Original price was: $5.00.$3.00Current price is: $3.00.

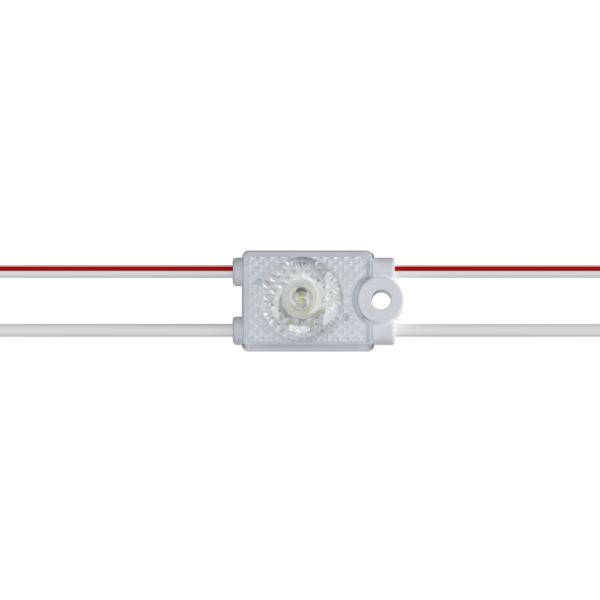

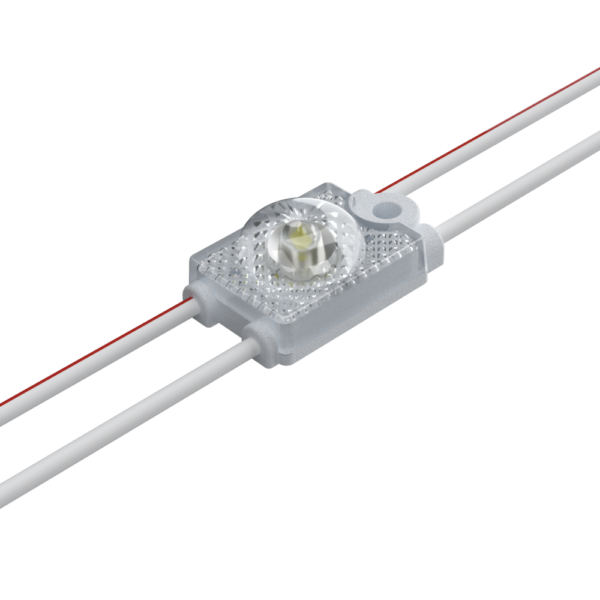

Designed for compact lightboxes and slim channel letters, PRISMA S1+ performs best in depths of 30–50 mm. With a wide 175° beam angle, it delivers soft, evenly distributed light – ideal for narrow spaces where precision and uniformity are key.
CHARACTERISTIC |
VALUE |
| Supply voltage | 12 VDC |
| Power | 0.36 W |
| Recommended depth | From 30 to 50 mm |
| CC distance | 150 mm |
| Binning | 4 SDCM |
| Operating temperature | -25°C ~ +60°C |
| Storage temperature | -40°C ~ +85°C |
| Storage conditions | Relative humidity <60% |
| IP class | IP67 |
| Certification | CE, RoHS and UKCA compliant |
| Lifetime | L70 50,000h |
| Warranty | 5 years |
Baltled specializes in LED illumination solutions for signage applications, with a focus on helping customers make the most of lighting technologies.
