$3.00

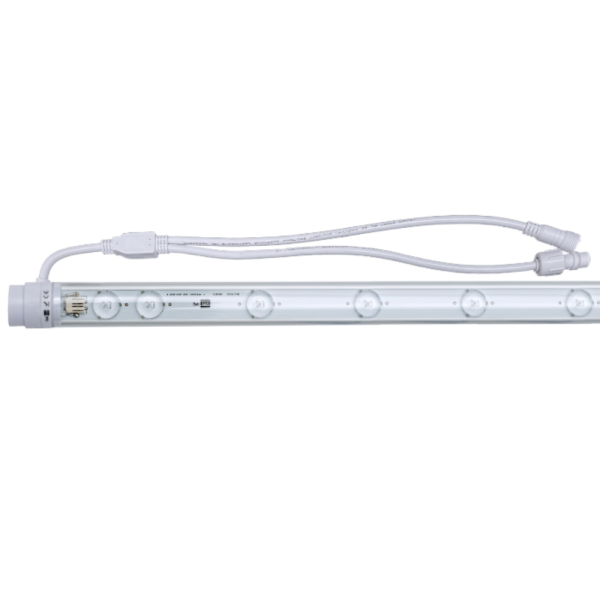

With the LED Retrofit tube we introduce a convenient step ahead solution to upgrade existing fluorescent tubes for city lights, bus shelters, and similar. Our double-sided tubes vary in length from 0.6 to 2.4 meters and have two optional covers: clear and milky. It also comes with three connection options: G13 socket, two sides plug, or double plug. Product versatility, great efficacy of up to 148 lm/W, IP67 protection class, and 5-year warranty make it easy to choose this upgrade.
CHARACTERISTIC |
VALUE |
| Supply voltage | 220 VAC | 24 VDC |
| Power factor | >0.90 |
| Efficiency | 138 lm/W – 148 lm/W |
| CCT | 6500 ± 250K | 4000 ± 250K |
| CRI | 80 |
| Beam angle | 2 x 160° | 2 x 180° |
| IP class | IP67 |
| Recommended depth | From 140 to 400 mm |
| Operating temperature | -20°C ~ +40°C |
| Storage temperature | -40°C ~ +80°C |
| Storage conditions | Realtive humidity <60% |
| Lifetime | L70 50 000h |
| Mounting options | G13 socket | double plug, top | two sides plug |
| Certification | CE and RoHS compliant |
| Warranty | 5 years* |
Datasheet pdf – Preview
Installation guide pdf – Preview
CE & RohS Certificate pdf – Preview
