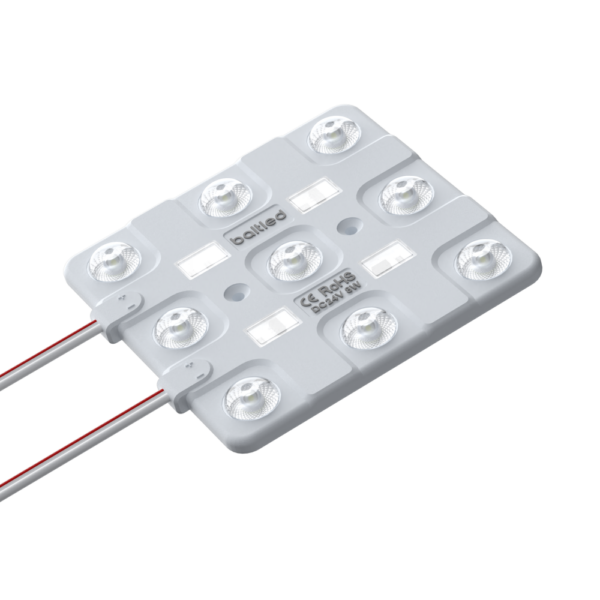

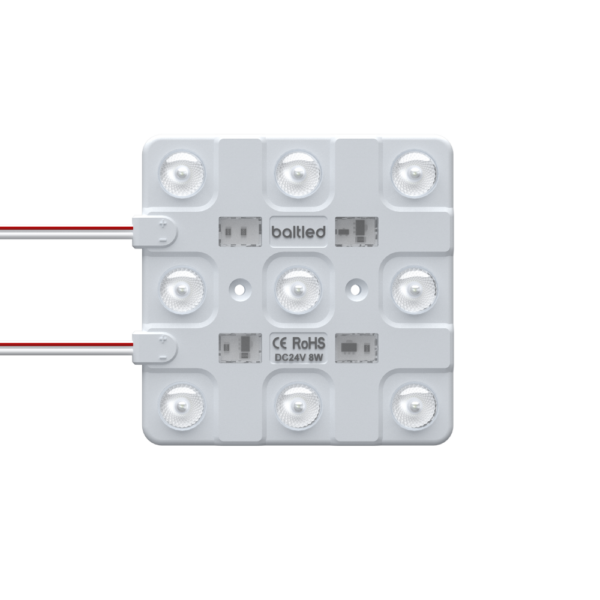

TITAN-9

TITAN-9 is Baltled’s most powerful LED module, developed for extra-large single-sided lightboxes and signage applications where maximum brightness is essential. With an output of up to 1100 lumens at 8 W, it delivers high-impact, uniform illumination with exceptional efficacy of 137.5 lm/W – impressive for a module of this power class.

Its 600 mm center-to-center spacing ensures quick, efficient installations, while still maintaining high brightness levels. The module supports relatively long chains for its wattage, simplifying system design in large-scale projects. Built on a durable aluminum PCB and powered by 24V DC, TITAN-9 offers reliable thermal management and long-lasting performance – making it the go-to solution when your signage demands serious light output

• Ideal for large-format signage and singlesided lightboxes
• Recommended depth 120-300 mm

• Exceptional brightness – up to 1100 lm per module
• Outstanding efficacy – up to 137.5 lm/W at 8W
• 600 mm spacing – fewer modules, faster installation
• Lifetime over 75,000 h (L80)

• 5 years warranty
